TNT 5th Axis Tables

  • Most compact design in class to fit small machines
  • Largest machinable work area in class
  • Strongest brake torque in class with a built-in air-over-hydraulic booster
  • Heaviest-duty design in class:
    • True Dual Bearing design with nose & tail bearing spindle
    • Largest diameter bearing, worm wheel and spindle diameter
  • Easy maintenance
  • Exceptional water protection with a patented Auto Air Purging System
    • Protects unit against high pressure coolant
  • Available as:
    • Integrated 5th Axis
    • Indexer with programmable control box
    • Super high resolution with optional rotary scale

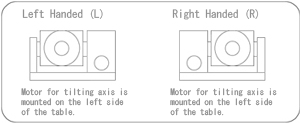

    • TNT rotary table TNT table positions
    TNT100 table TNT170 table TNT250 table
    Right Hand TNT100L TNT170R/L (L shown) TNT250R
    Spindle Diameter 100mm 3.94" 120mm 4.72" 180mm 7.09"
    Spindle Diameter w/ Adapter - 170mm 6.69" 250mm 9.84"
    Center Height 135mm 5.31" 180mm 7.09" 225mm 8.86"
    Table ID Pilot 50mm H7 x 23 55mm H7 x 45 90mm H7
    Thru Hole Diameter 28mm 1.10" 40mm 1.57" 72mm 2.83"
    Air Pressure 72-100 psi 72-100 psi 72-100 psi
    Clamp Torque Rotary 200 Nm 148 ft/lbs @ 72 psi 520 Nm 384 ft/lbs @ 72 psi 1,050 Nm 774 ft/lbs @ 72 psi
    Clamp Torque Tilting 300 Nm 236 ft/lbs @ 72 psi 1,100 Nm 738 ft/lbs @ 72 psi 1,200 Nm 885 ft/lbs @ 72 psi
    Indexing Accuracy Rotary +/- 17.5 seconds +/- 17.5 seconds +/- 12.5 seconds
    Indexing Accuracy Tilting +/- 20 seconds +/- 20 seconds +/- 20 seconds
    Total Reduction Ratio Rotary 1/72 1/72 1/90
    Total Reduction Tilting 1/120 1/120 1/120
    Max RPM Rotary 41.6 41.6 33.3
    Max RPM Tilting 25 25 16.6
    Guide / Location Key Width 14mm h7 14mm h7 18mm h7
    Table Weight 80kg 176lbs 138kg 304lbs 280kg 617lbs
    PDF TNT100L TNT170L TNT250R
