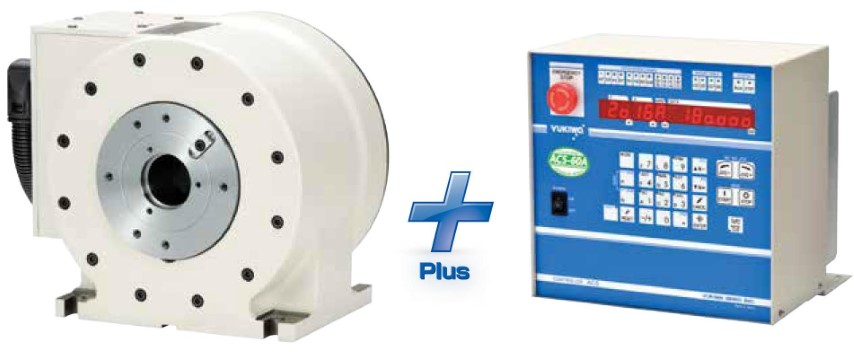

DRC Direct Drive 4th Axis Indexer

  • Up to 300 RPM indexing
  • High Speed, Quick Clamping
  • Compact Body
  • Powerful Clamping
  • Outstanding water protection:
    • Auto-Air Purging system (PAT.) is built in as standard.
  • High Resolution Encoder
  • AC5-60 Indexer Controller Included
  • Includes offline Macro B programming option

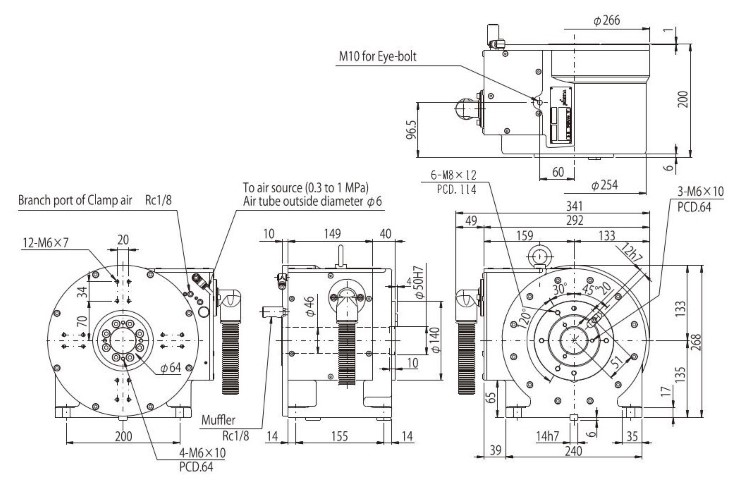

    • DRC direct-drive indexer DRC indexer drawing
    DRC170-AC5-60
    Table Diameter 140mm 5.51"
    Center Height 135mm 5.31"
    Air Pressure 0-145 psi
    Clamp Torque 100 Nm @ 0 psi, 900 Nm @ 145 psi
    Indexing Accuracy +/- 7.5 seconds
    Rotational Torque 33 ft/lbs
    Max RPM 300
    Table Weight 76kg 168lbs
    PDF DRC170-AC5-60

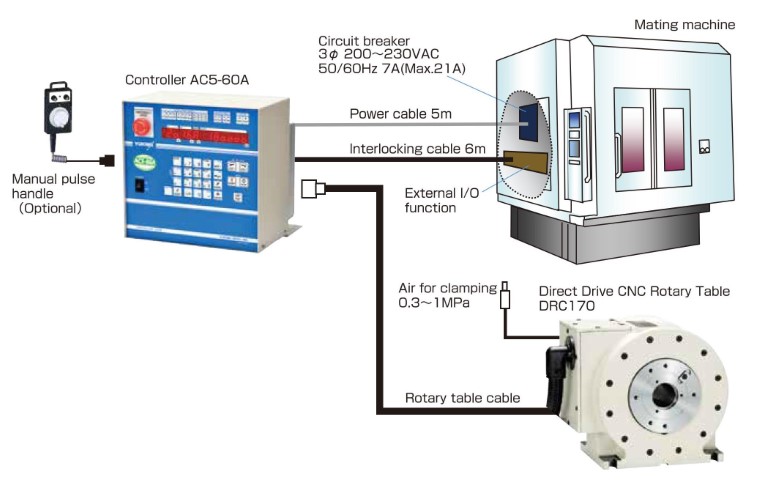

    DRC AC5-60 connection
