YNCP 4th Axis Tables
- Strongest brake torque in class with “Built In” air over hydraulic booster
- Accurate indexing: high durablility worm gear system and solid one piece face plate / spindle design.
- Heaviest duty design in class:
- True Dual Bearing design with nose & tail bearing spindle
- Largest diameter bearing, worm wheel and spindle diameter
- Solid one piece face plate and spindle construction
- Easy maintenance
- Exceptional water protection with patented Auto Air Purging System
- Protects unit against high pressure coolant
- Available as:
- Integrated 4th Axis
- Indexer with programmable control box

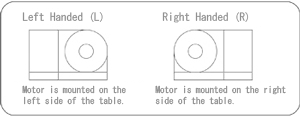

- Left Hand configurations
- Super high resolution with optional rotary scale
| Right Hand | YNCP170R | YNCP200R | YNCP250R |
|---|---|---|---|
| Table Diameter | 170mm 6.69" | 200mm 7.87" | 250mm 9.84 |
| Center Height | 135mm 5.31" | 160mm 6.30" | 200mm 7.87" |
| Table ID Pilot | 60mm H7 x 10 | 70mm H7 x 10 | 90mm H7 x 10 |
| Thru Hole Diameter | 45mm 1.77" | 56mm 2.20" | 72mm 2.83" |
| Air Pressure | 44-72 psi | 44-72 psi | 44-72 psi |
| Clamp Torque | 550 Nm 406 ft/lbs @ 72 psi | 850 Nm 627 ft/lbs @ 72 psi | 1,050 Nm 774 ft/lbs @ 72 psi |
| Indexing Accuracy | +/- 15 seconds | +/- 12.5 seconds | +/- 10 seconds |
| Horizontal Load (N) | 9,000 | 10,000 | 11,000 |
| Vertical Load (N) | 4,000 | 6,000 | 7,000 |
| Circumferential Load (N) | 4,000 | 6,200 | 7,000 |
| Horizontal Load Limit (Inertia) | 140kg 309lbs 0.50kg*m2 | 200kg 440lbs 1.00kg*m2 | 250kg 550lbs 2.00kg*m2 |
| Vertical Load Limit (Inertia) | 70kg 154lbs 0.25kg*m2 | 100kg 220lbs 0.50kg*m2 | 125kg 275lbs 1.00kg*m2 |
| Total Reduction Ratio | 1/90 | 1/90 | 1/90 |
| Max RPM | 33.3 | 33.3 | 33.3 |
| Guide / Location Key Width | 14mm h7 | 18mm h7 | 18mm h7 |
| Table Weight | 43kg 95lbs | 69kg 152lbs | 114kg 251lbs |
| YNCP170R | YNCP200R | YNCP250R |
