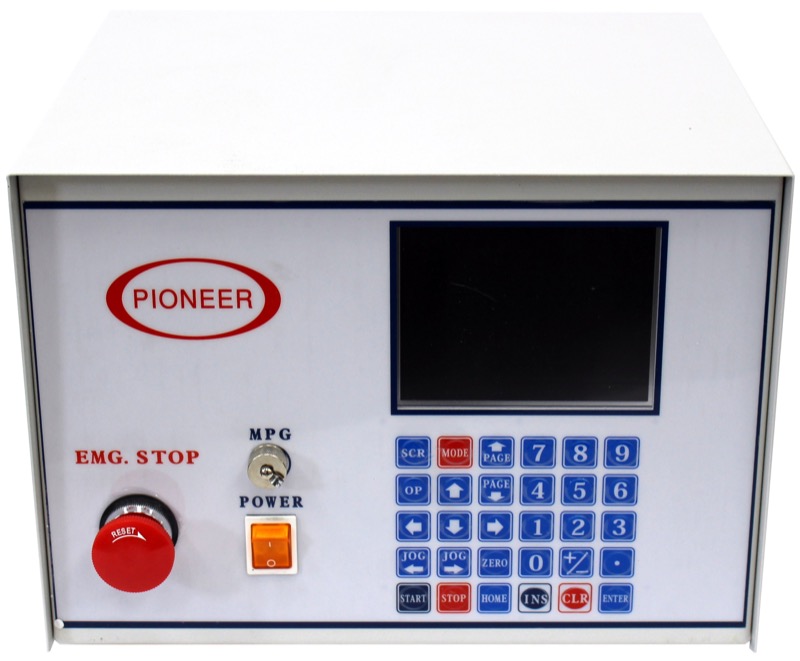

Pioneer Controller for CNC Rotary Tables

  • Pioneer Indexer Control is a NC controller package connected to machine via M-code. The AC series control enables you to move the indexer from machine to machine easily when you need to.
  • 15 sets of program, 90 steps for each program
  • 0.001° degree minimum increment
  • Machine Control / Off Line Programmable w/ Machine Macro β Function & RS232 Connection
  • Optional Hand Jog Controller Available
AC5

EZX-310 EZX-315 EZX-830 EZX-A61
Works with AX4-170, AX4-171, AX4-200 AX4-250 AX4-320, AX4-400, AX4-500 AX4-630
Controller Size 14”W x 10.5”H x 12.5”D 14”W x 10.5”H x 12.5”D 14”W x 10.5”H x 12.5”D 14”W x 10.5”H x 12.5”D
Power 200-230V +10%/-15% 50/60Hz Three Phase 200-230V +10%/-15% 50/60Hz Three Phase 200-230V +10%/-15% 50/60Hz Three Phase 200-230V +10%/-15% 50/60Hz Three Phase
