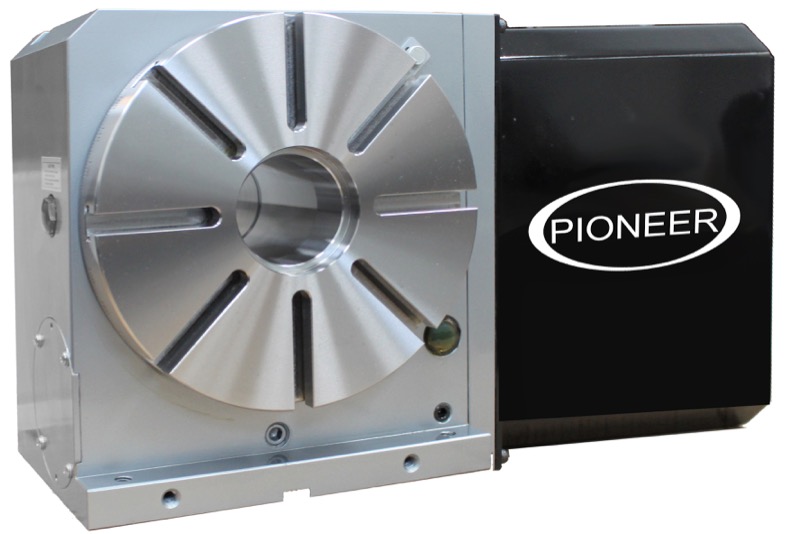

Pioneer 4th Axis Tables 170-320
- Combination of case hardened special alloy screw and special high tensile strength brass worm wheel ensures exceptional wear resistant and long durability
- Dual lead worm screw for easy backlash adjustment
- Large diameter worm wheel for extra rigidity, smoothness and torque transfer efficiency
- Double bearing design and solid one piece face plate & spindle for extra rigidity
- Large thru hole standard on most face plate sizes
- Available as:
- Integrated 4th Axis
- Indexer with programmable control box
- Left Hand configurations
- Super high resolution with optional rotary scale
| AX4-171R | AX4-200R | AX4-250R | AX4-320R | |
|---|---|---|---|---|
| Table Diameter | 170mm, 6.69" | 200mm, 7.87" | 250mm, 9.84 | 320mm, 12.6" |
| Center Height | 160mm, 6.30" | 160mm, 6.30" | 185mm, 7.28" | 210mm, 8.27" |
| Thru Hole Diameter | 35mm H7 | 35mm H7 | 70mm H7 | 110mm H7 |
| Faceplate T-Slot Width | 12mm H7 | 12mm H7 | 12mm H7 | 14mm H7 |
| Clamp Type Std | Pneumatic | Pneumatic | Pneumatic | Hydraulic |
| Clamp Torque | 245 Nm 181 ft-lbs @ 72 psi | 245 Nm 181 ft-lbs @ 72 psi | 461 Nm 340 ft-lbs @ 72 psi | 1392 Nm 1026 ft-lbs @ 286 psi |
| Indexing Accuracy | +/- 12.5 seconds | +/- 12.5 seconds | +/- 10 seconds | +/- 10 seconds |
| Horizontal Load (N) | 7,840 | 8,055 | 11,840 | 13,475 |
| FANUC servo motor | aif4 | aif4 | aif4, 8 | aif4, 8 |
| Total Reduction Ratio | 1/90 | 1/90 | 1/180, 1/90 | 1/180, 1/90 |
| Max RPM | 22.2 | 22.2 | 11.1, 22.2 | 11.1, 22.2 |
| Guide / Location Key Width | 18mm h7 | 18mm h7 | 18mm h7 | 18mm h7 |
| Vertical Load (Nm) | 392 | 490 | 705 | 900 |
| Circumferential Load (Nm) | 245 | 245 | 461 | 696 |
| Vertical Weight Limit | 75kg, 165lbs | 100kg, 220lbs | 125kg, 275lbs | 150kg, 330lbs |
| Horizontal Weight Limit | 150kg, 330lbs | 200kg, 440lbs | 300kg, 660lbs | 350kg, 770lbs | Table Weight | 70kg 155lbs | 84kg 185lbs | 124kg 275lbs | 210kg 463lbs |
