Controller for CNC Rotary Tables

  • YUKIWA Indexer Control is an NC controller package connected to the machine via M-code. The AC series control enables you to move the indexer between machines. The package includes a servo motor, control box, and cable set.
  • Available in 300W / 750W / 1000W / 1500W
  • Direct Programming for up to 100 programs, with total storage of 10,000 steps
  • Machine Control / Offline Programmable with Machine Macro β Function & RS232 Connection
  • Easy maintenance
  • Compact Design
  • Closed construction box to prevent contamination from oil mist
  • Optional Hand Jog Controller Available

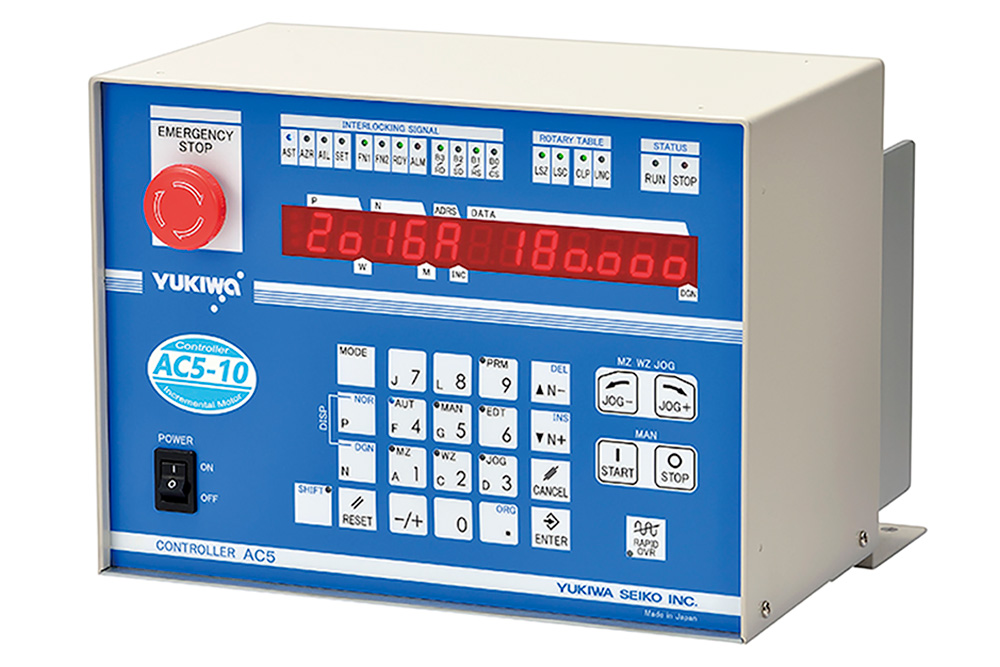

    • AC5 indexer controller
    AC5-10 AC5-30 AC3-60 AC3-90
    Rated Output (incremental motor) 300W 750W 1.0kW 1.5kW
    Rated Current 2.2A 3.9A 7A 8.7A
    Max Current 7.5A 15.3A 21A 26.1A
    Outside Dimensions 10.24"W x 7.83"H x 8.97"D 10.24"W x 7.83"H x 8.97"D 10.24"W x 9.84"H x 9.76"D 10.24"W x 9.84"H x 9.76"D
    Weight 17.2lbs 17.2lbs 22lbs 22lbs
    Power 200-230V +10%/-15% 50/60Hz Single Phase 200-230V +10%/-15% 50/60Hz Single Phase 200-230V +10%/-15% 50/60Hz Three Phase 200-230V +10%/-15% 50/60Hz Three Phase
    • Number of control axes 1 axis
    • Angle unit & max angle 0.001°, ±999.999° ±999 rotations (maximum continuous rotation: ±5965)
    • Movement Mode Auto (AUT), Manual (MAN), Return to machine origin (MZ), Return to work origin (WZ), Jog (JOG), Program edit (EDT), Parameter (PRM)
    • Program function Command types (incremental, absolute, shortcut), equal division, sector division, cutting feed, multiple rotation (±999 evolutions), continuous start, interlocking start, machine origin return, work coordinate system setting, continuous start, continuous block operation, dwell, FIN output change, jump, subprogram (1-999 repetitions), clamping effective/ineffective
    • Program capacity & external program selection 100 programs X100 steps, M signal mode: 100 programs
    • Program and parameter storage Nonvolatile memory (rewritable up to one million times)
    • Other functions JOG function, rapid override, stroke limit function, external emergency stop signal
    • Interlocking input
      • Function Start, origin return, program selection signal 0-3, program setting, interlock
      • Electrical Specification DC24V, non-polar, non-voltage contact/transistor input, ON current 8 mA; supply power from the mating machine.
    • Interlocking output
      • Function Block completion signals 1 and 2, operation preparation completion, alarm
      • Electrical Specification DC24V, non-polar, non-contact output, maximum load current 50mA per output; supply power from the mating machine.
    • Serial interface One RS232C port, D-sub 9-pin connector, with dust cover
