TNC Slim Type 4th Axis Tables

  • Slim Type - 97mm body thickness
  • Affordable, quality Japanese-manufactured rotary table
  • Lightweight and compact: Suitable for small-sized machining centers
  • Accurate indexing: high-durability worm gear system and solid one-piece face plate and spindle design.
  • Outstanding water protection:
    • Auto-Air Purging system (PAT.) is built in as standard.
  • Easy maintenance
  • Available as:
    • Integrated 4th Axis
    • Indexer with programmable control box

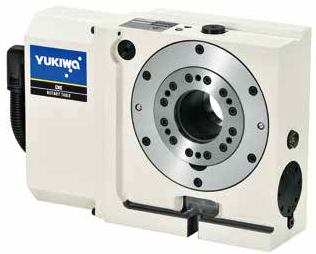

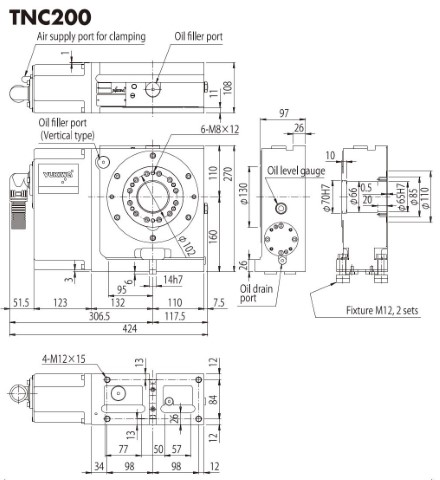

    • TNC200 drawing
    TNC200 rotary table Rotary table positions
    Left Hand TNC200L
    Table Diameter 130mm 5.12"
    Center Height 160mm 6.30"
    Air Pressure 72-100 psi
    Clamp Torque 340 Nm @ 72 psi
    Indexing Accuracy +/- 15 seconds
    Total Reduction Ratio 1/90
    Max RPM 33.3
    Table Weight 43kg 95lbs
    PDF TNC200L

    Wider Fixture and Part area with STT160 Side Table

  • Designed for Trunnion Fixturing:
    • Extended work area for small bed machines and rotary pallets.

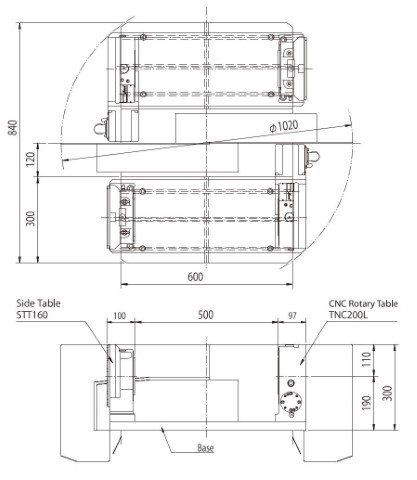

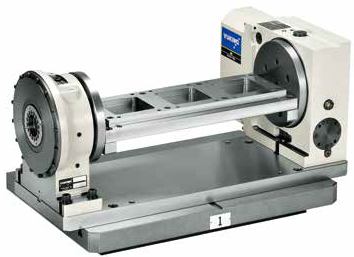

    • TNC200 with STT160 side table TNC200 and STT160 rotary pallet drawing

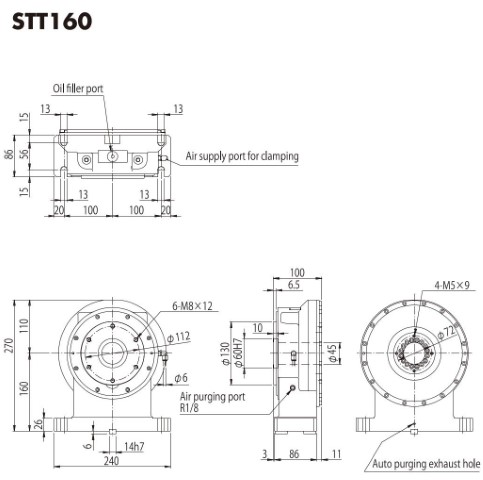

    STT160 side table STT160 side table drawing
