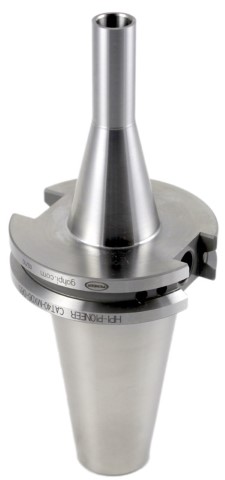

MX Collet Chucks

Designed for 5 Axis Finish Milling, Thread Milling & Precision Drilling
  • Ultimate Precision: 3µm (0.0001”) Standard Runout (TIR) at 4 Times Tool Diameter
  • Coolant Thru the Center: Sealed design for pressures up to 1,500 psi
  • Dynamically Balanced G2.5 @ 25,000 RPM or < 1 gmm

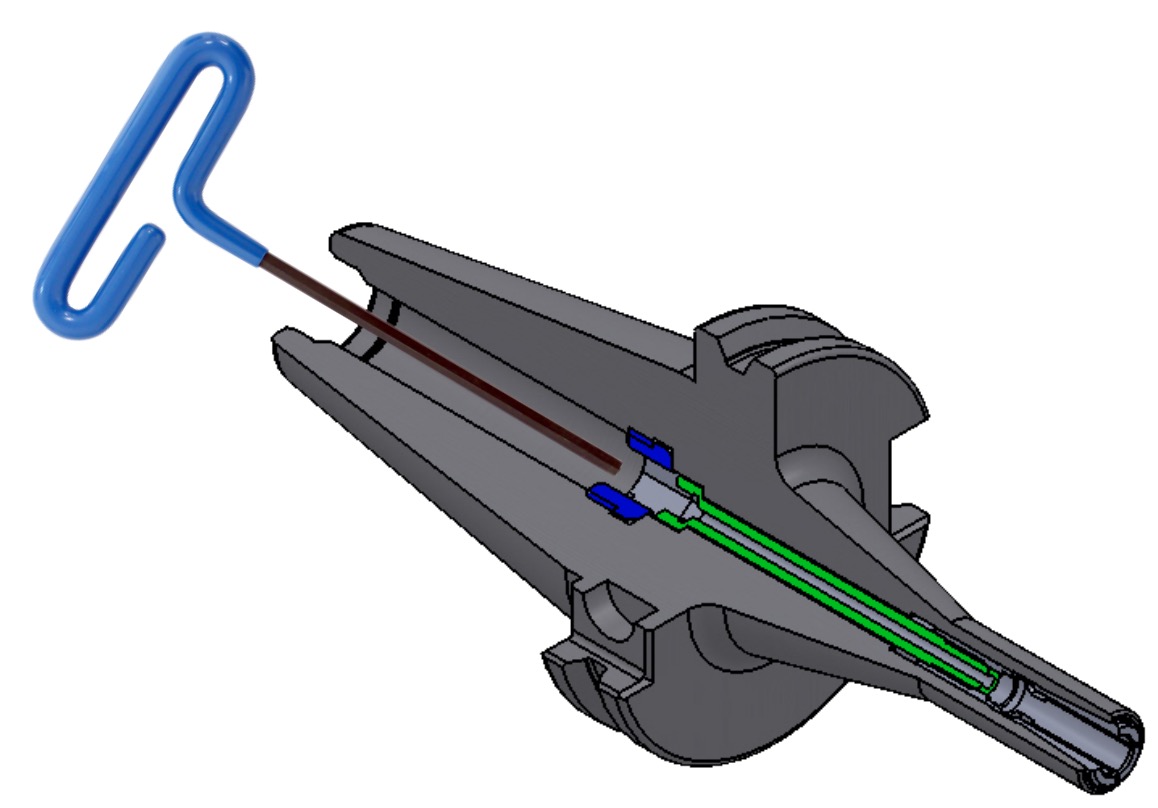

  • Rear Draw Bar Locking System
    • Easy Function & Cost Competitive
    • Lowest Cost of Ownership in its class
    • Simple maintenance free system
  • Available in 1/4, 3/8 & 1/2" Capacity
  • Compact Design
    • MX06 = 0.500 Nose Diameter
    • MX08 = 0.787 Nose Diameter
    • MX12 = 1.000 Nose Diameter

MX Collet Chuck
When you "have to" use Extensions

No one wants to use extensions but when you have to, use the extension with the best TIR in the industry.

  • 20X+ better TIR than DA Extensions
  • 4X+ better TIR than ER Extensions
  • No Collet Nut for Optimal Clearance
  • 0.0001" TIR (or better) at 4X Tool Diameter
  • Coolant Thru Standard
MX Collet Chuck
ER Collet Chuck
Available Shanks
BT30 BT30-B BT40 BT40-B CAT40 CAT40-B CAT50 CAT50-B HSK63A Straight Shank
