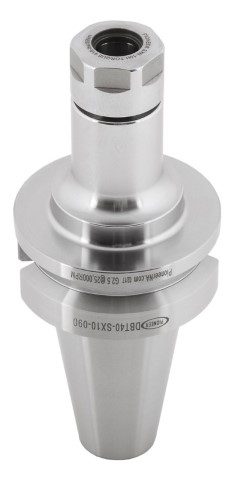

SX Collet Chucks

  • Ultimate Precision: 0.0001” TIR Guaranteed on UP Collets collet chuck tool holding
  • Accurate: 4X more accurate than ER with 10X better repeat-ability collet chuck
  • Powerful: 2X the driving torque than ER collet chuck
  • Compact Design: Compact designed for close clearance programming tool holding collet chuck
  • Versatile: Designed for Drilling, Reaming, Thread Milling, Tapping & Milling collet chuck tool holding
  • Wide Range: For tooling from 0.031” to 1.000” collet chuck tool holding
  • Dynamically Balanced G2.5 @ 25,000 RPM or < 1 gmm tool holding

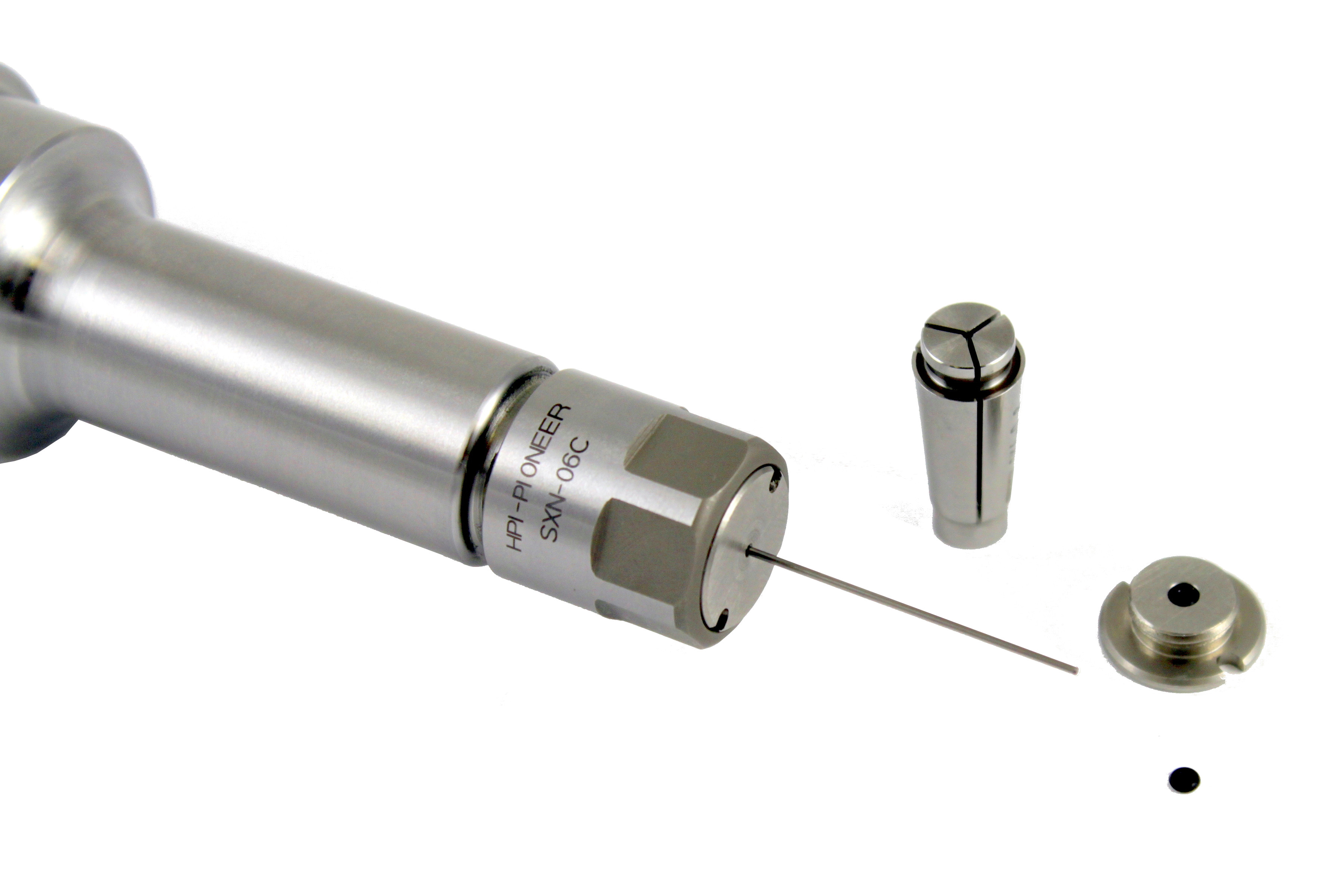

Coolant Cap System

Coolant Caps Systems can effect TIR. Follow the procedure below to eliminate TIR with SX Coolant Caps: tool holding collet chuck

Jet-Blast
  1. Insert Collet into collet nut collet chuck
  2. Insert Cap into the nut, leave loose to allow the cap to float to the cutting tool
  3. Insert Cutting Tool
  4. Tighten Collet Nut onto the chuck to recommended tightening torque
  5. Snug Coolant Cap

Accuracy "is" Everything

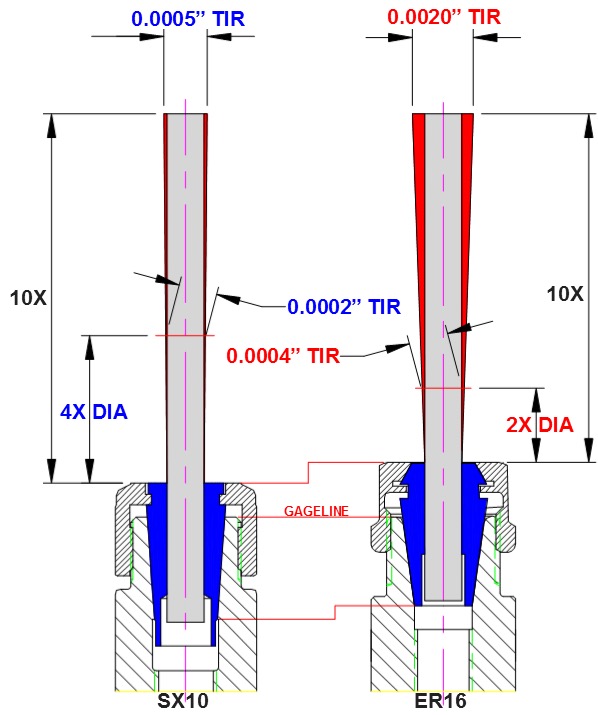

Standard SX Collets are guaranteed for 0.0002" (0.005mm) @ 4X Tool Diameter, that is 1/2 ER systems at 2X the distance from the chuck face! tool holding collet chuck

Jet-Blast
Upgrade to SX-P Collets and reduce the TIR by 1/2 for Ultimate Performance!
ER Collet Chuck

ER Collet Chuck
Available Shanks
BT30 DBT30 BT40 DBT40 CAT40 DCAT40 CAT50 DCAT50 HSK40E HSK63A HSK100A Straight Shank
