ER Collets

Optimize your work in many ways:

Pioneer has updated our collet offering to meet the high demands of precision cutting tools and high performance applications. collets

Options

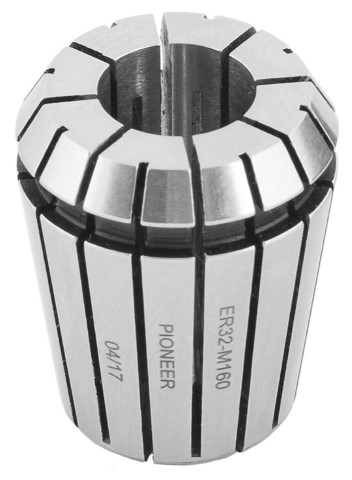

  • Standard 10 Microns @ 2D (0.0004” @ 2D)
  • Stainless UP - Precision 5 Microns @ 3D (0.0002” @ 3D), Stainless
    • Note: Sizes under 3mm are Alloy with Anti-Rust Coating

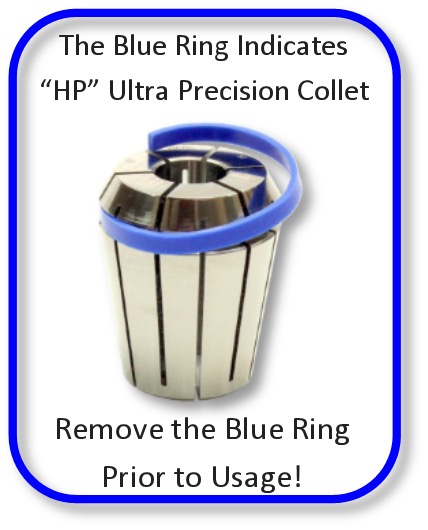

  • Stainless UPP - Ultra Precision 3 Microns @ 3D (0.0001” @ 3D), Stainless
    • Note: Sizes under 3mm are Alloy with Anti-Rust Coating

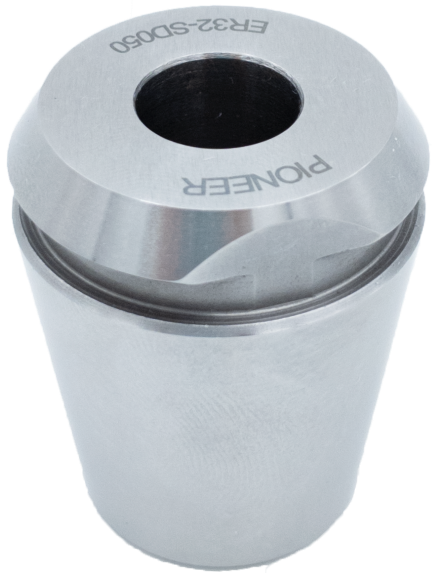

  • Shrink ER - 0.0001" TIR - Made from ISO-40CrMoV5 (H13)
    • Note: Additional sizes coming soon!
  • Sealed ER - Sealed by Design, 1,500 PSI collets

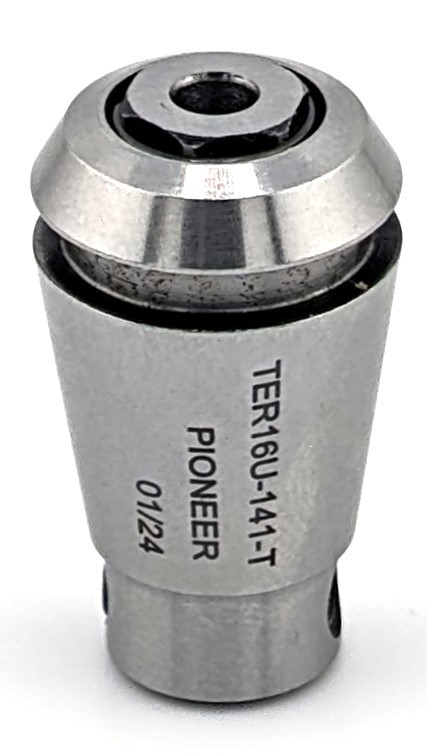

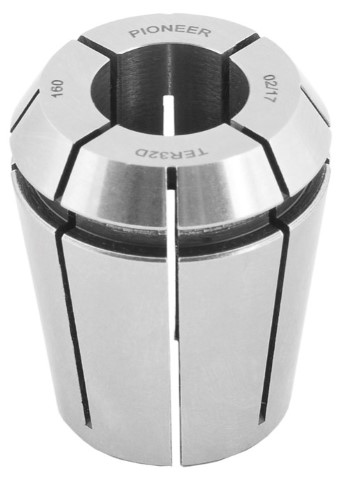

  • Tap ER - ANSI and DIN available collets

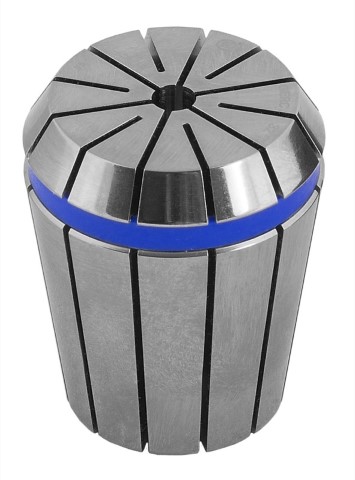

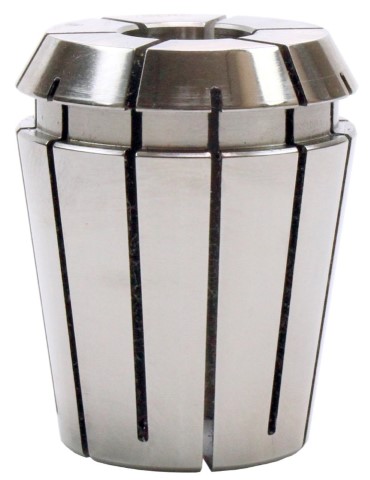

  • Note: Due to extreme cost increase by supplier GERC inch collets will be discontinued April 2019 and GERC-HP on demand fob Germany.

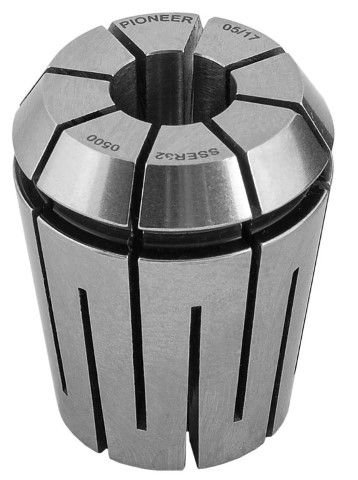

    Stainless Steel ER Ultra Precision Collets

    Pioneer Stainless Steel Collets are only available in a 5 micron (0.0002”) TIR @ 3D.

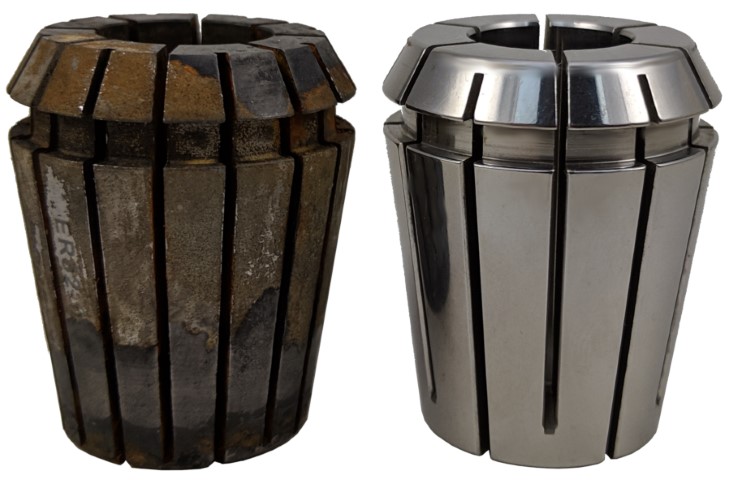

    ER UP Collet Test

    The picture above is a standard ER collet and a Stainless Steel Collet that were submerged in Chicago tap water for 3 months. The stainless collet showed no corrosion anywhere compared to the standard collet. collets

    420 Stainless is a 12% Chromium high carbon material which provides high hardenability and superior corrosion resistance. 420 Stainless allows us to harden the collets to Rc45, similar hardness as most standard ER collets in the market today.

    Available in ER11-ER32 in select sizes. collets

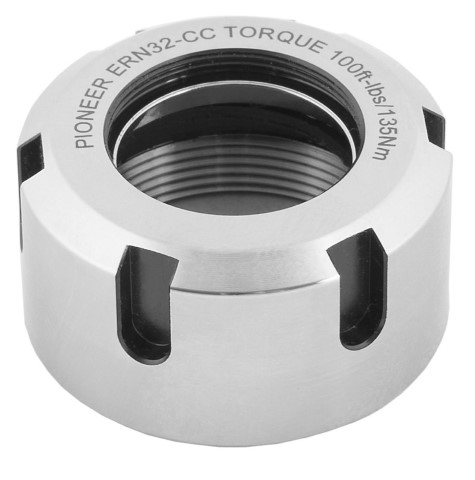

    Coolant Cap Nut

    For Coolant Caps

    Coolant Cap Nut
    ERN11H
    ERN16H
    ERN20H
    ERN25
    ERN32
    ERN40

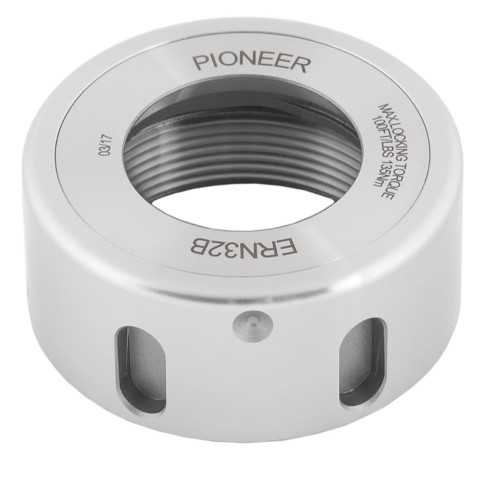

    Bearing Nuts

    Non Coolant, High Performance, High Torque

    Coolant Cap Nut
    ERN16B
    ERN20B
    ERN25B
    ERN32B
    ERN40B

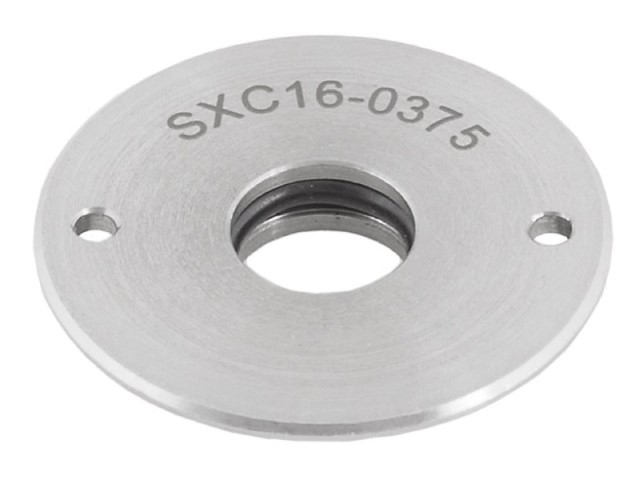

    Coolant Cap Usage

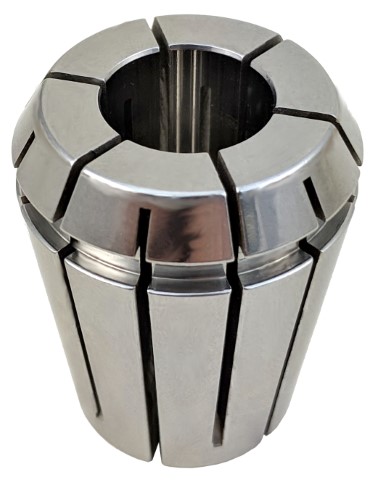

    ER Collet

    ER Collet
