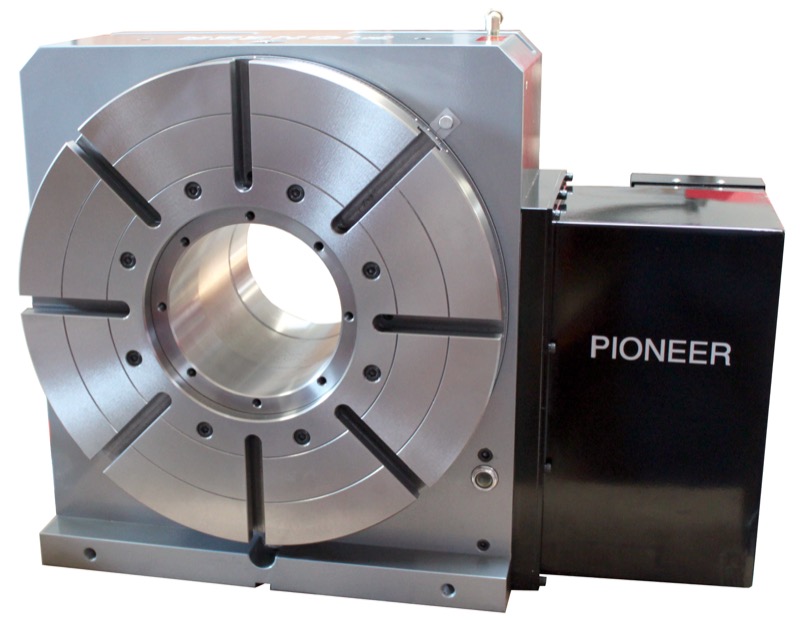

Pioneer 4th Axis Tables 400-800

  • Combination of a case-hardened special alloy screw and high-tensile-strength brass worm wheel ensures exceptional wear resistance and durability
  • Dual-lead worm screw for easy backlash adjustment
  • Large-diameter worm wheel for extra rigidity, smoothness, and torque-transfer efficiency
  • Double-bearing design and solid one-piece face plate and spindle for extra rigidity
  • Large through-hole standard on most faceplate sizes
  • Available as:
    • Integrated 4th Axis
    • Indexer with programmable control box
    • Left Hand configurations
    • Super high resolution with optional rotary scale
    • AX4 rotary table Rotary table positions
    AX4-400R AX4-500R AX4-630R AX4-800R AX4-800BR
    Table Diameter 400mm, 15.75" 500mm, 19.68" 630mm, 24.8 800mm, 31.5" 800mm, 31.5"
    Center Height 250mm, 9.84" 310mm, 12.2" 400mm, 15.75" 480mm, 18.9" 480mm, 18.9"
    Thru Hole Diameter 150mm, 5.91" H7 180mm, 7.08" H7 254mm, 10.00" H7 254mm, 10.00" H7 450mm, 17.71" H7
    Faceplate T-Slot Width 14mm H7 18mm H7 18mm H7 20mm H7 20mm H7
    Clamp Type Std Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
    Clamp Torque 1,803 Nm 1,330 ft-lbs @ 286 psi 2,450 Nm 1,807 ft-lbs @ 286 psi 6,860 Nm 5,060 ft-lbs @ 286 psi 10,297 Nm 7,588 ft-lbs @ 286 psi 15,690 Nm 11,572 ft-lbs @ 286 psi
    Indexing Accuracy +/- 7.5 seconds +/- 7.5 seconds +/- 7.5 seconds +/- 7.5 seconds +/- 7.5 seconds
    FANUC servo motor aif12 aif12, 22 aif22 aif22 aif22
    Total Reduction Ratio 1/90 1/120 1/180 1/180 1/180
    Max RPM 22.2 16.7 11.1 11.1 11.1
    Guide / Location Key Width 18mm h7 18mm h7 18mm h7 22mm h7 22mm h7
    Horizontal Load (kg) 3,500 4,000 5,000 6,000 5,000
    Vertical Load (kgm) 250 350 800 1000 1600
    Circumferential Load (kgm) 184 380 700 1,050 1,600
    Vertical Weight Limit 300kg, 660lbs 350kg, 770lbs 400kg, 880lbs 600kg, 1,323lbs 1,500kg, 3,307lbs
    Horizontal Weight Limit 500kg, 1,100lbs 600kg, 1,320lbs 1,000kg, 2,205lbs 1,500kg, 3,307lbs 3,000kg, 6,614lbs
    Table Weight 280kg, 616lbs 380kg, 836lbs 860kg, 1,892lbs 1,200kg 2,640lbs 1,060kg 2,337lbs
