HSK100A-SD125-120

• Description: HSK100A 1-1/4 SHRINK FIT 4.72

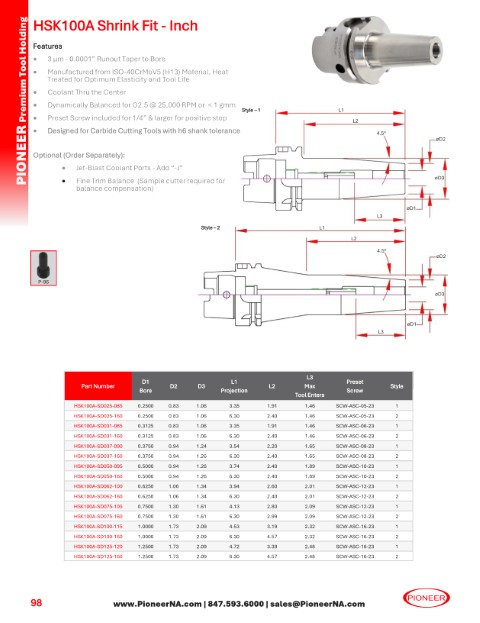

• Catalog Page: 98
• List Price: $581.20
• Inventory Status: Stock
• Item Weight: 6.7 lbs

Call Out	Data
Preset Screw	SCW-ASC-16-23
Misc	WRENCH HSK100 COOLNT TUBE
Misc2	TUBE-100A
A	4.5
D1	1.25
D2	1.73
D3	2.09
L1	4.73
L2	3.39
L3	2.48
T	1
Drawing .dwg	DWG
Drawing .stp	STEP

Free 3D STP file viewer for Windows can be downloaded here!

---
