CAT50-SDM10-160
- Description: CAT50 10MM SHRINK X 6.30

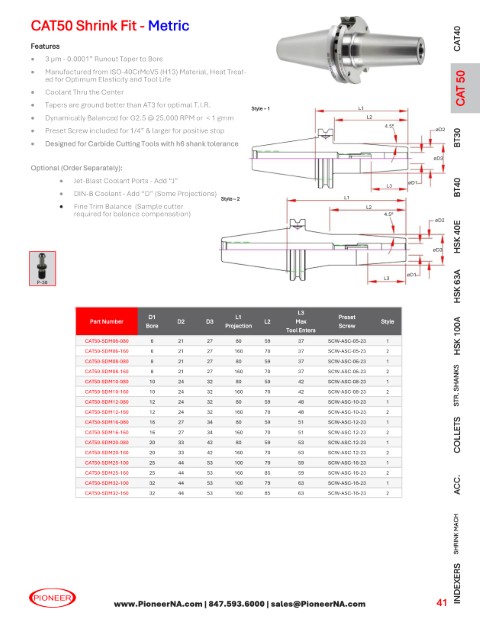

- Catalog Page: 41
- List Price: $822.20
- Inventory Status: Stock
- Item Weight: 7.7 lbs
| Call Out | Data |
|---|---|
| Preset Screw | SCW-ASC-08-23 |
| A | 4.5 |
| D1 | 10 |
| D2 | 0.94 |
| D3 | 1.26 |
| L1 | 6.3 |
| L2 | 2.76 |
| L3 | 1.65 |
| Style | 1 |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
