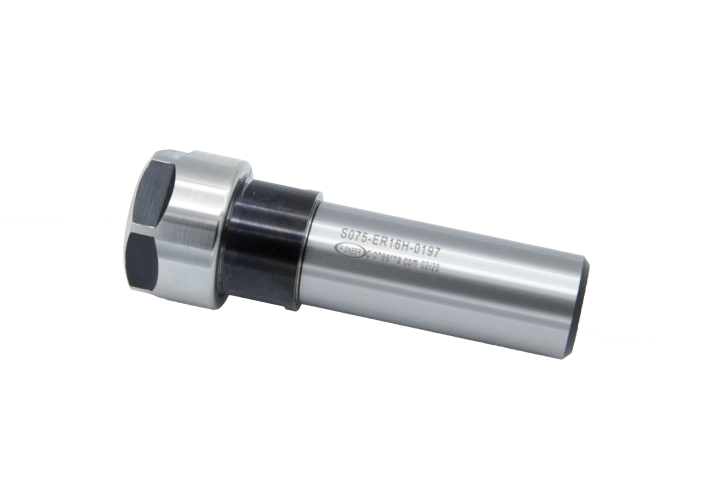

S075-ER16H-0197
- Description: 3/4 EXTENSION ER16 HEX 1.97
- Catalog Page: 112
- List Price: $176.90
- Inventory Status: Stock
- Item Weight: 0.4 lbs
| Call Out | Data |
|---|---|
| Wrench | WRENCH ERW-16 HEX |
| Nut | NUT ERN16H |
| Preset Screw | ER/ASC-ER16 |
| D1 | 0.75 |
| D2 | 1.1 |
| L1 | 3.35 |
| L2 | 1.97 |
| L3 | 1.38 |
| Drawing .stp | STEP |
