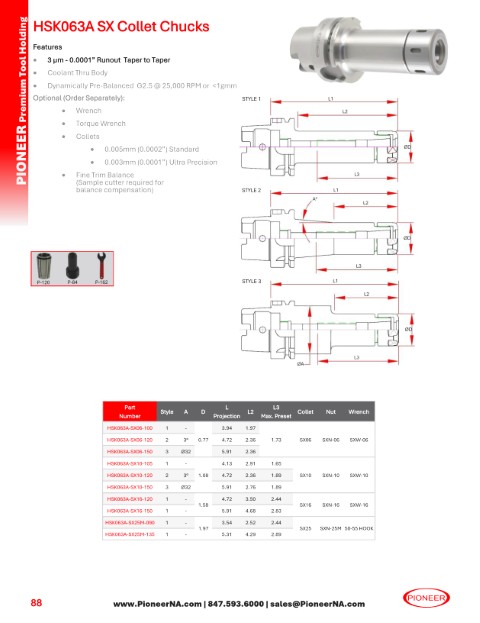

HSK063A-SX10-120
- Description: HSK63A SX10 COLLET CHUCK 4.72
- Catalog Page: 88
- List Price: $576.20
- Inventory Status: Stock
- Item Weight: 2.3 lbs
| Call Out | Data |
|---|---|
| Wrench | WRENCH SXW-10 H |
| Nut | NUT SXN-10 H |
| Misc | WRENCH HSK63A COOLNT TUBE |
| Misc2 | TUBE-063A |
| D1 | 1.08 |
| L1 | 4.72 |
| L2 | 2.36 |
| L3 | 1.89 |
| Style | 2 |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
