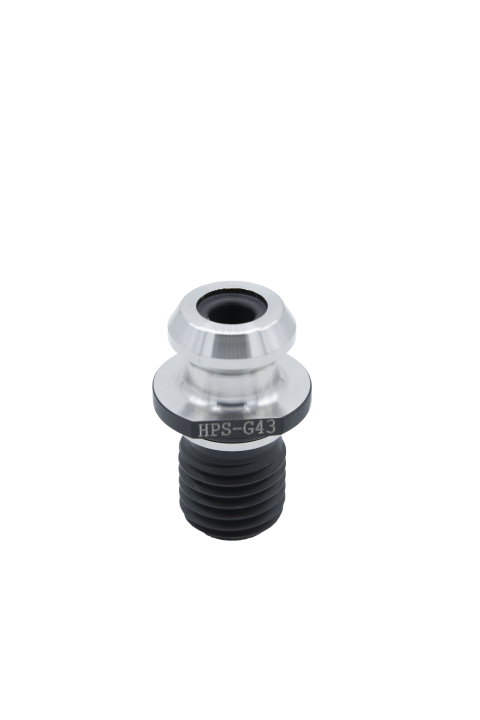

HPS-C50-MAZAK-COF

• Description: ANSI B5.50 CAT50 PULL STUD (45 DEG)
• Additional Info: COOLANT MAZAK SPEC (HPS-G43)
• Catalog Page: 38
• List Price: $32.90
• Inventory Status: Stock
• Item Weight: 0.0 lbs

Call Out	Data
Wrench	TWS-118
Notes	MAZAK 16mm CBORE
A	45
D1	1.14
D2	0.82
D3	1.031
F	1.187
H	0.394
L1	2.303
L2	1
L3	0.7
L4	0.197
T	"1""-8"
Used On	CAT50
