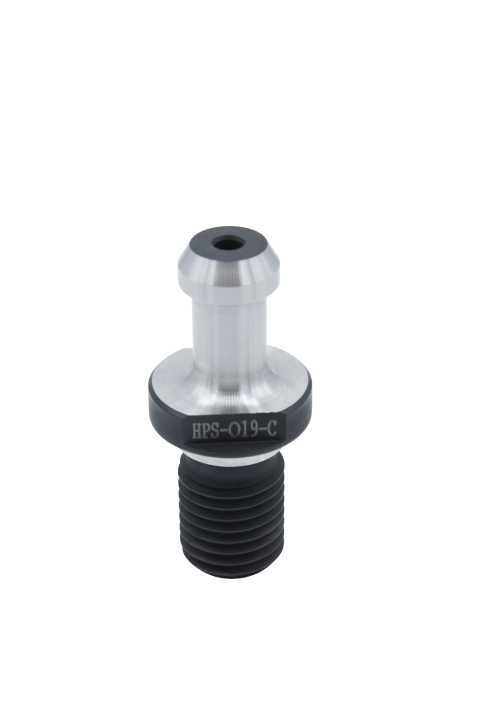

HPS-C50-MAS-90-C

• Description: MAS P50T-3 CAT50 PULL STUD (90 DEG)
• Additional Info: COOLANT THRU - (HPS-O19-C)
• Catalog Page: 38
• List Price: $39.60
• Inventory Status: Stock
• Item Weight: 0.2 lbs

Call Out	Data
Wrench	TWS-M30
Notes	MAS P50T-3
A	90
D1	0.906
D2	0.669
D3	1.031
F	30
H	0.25
L1	3.346
L2	1.78
L3	1.386
L4	0.394
T	"1""-8"
Oring OD	Y
Used On	CAT50
