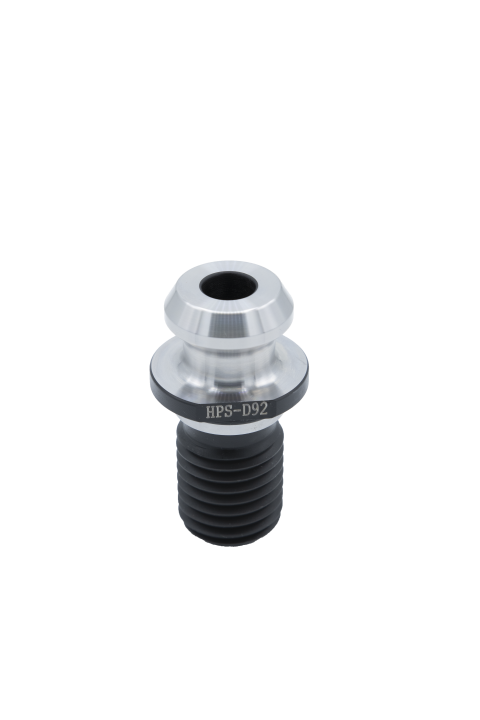

HPS-C50-ANSI-C

• Description: ANSI CAT50 PULL STUD (45 DEG)
• Additional Info: B5.50 COOLANT THRU (HPS-D92)

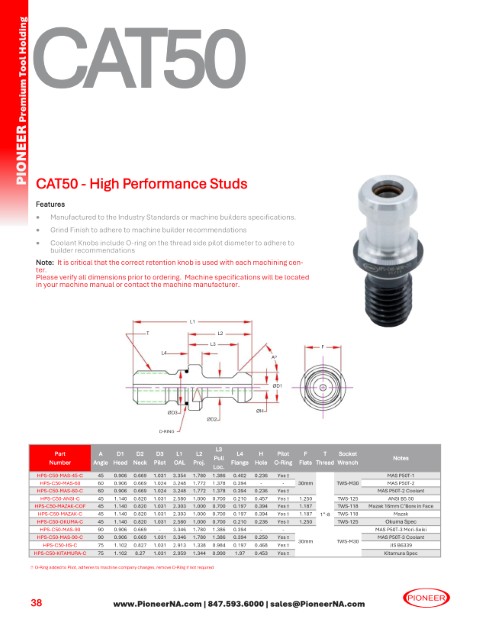

• Catalog Page: 38
• List Price: $32.90
• Inventory Status: Stock
• Item Weight: 0.4 lbs

Call Out	Data
Wrench	TWS-125
Notes	ANSI B5.50
A	45
D1	1.14
D2	0.82
D3	1.031
F	1.25
H	0.457
L1	2.58
L2	1
L3	0.7
L4	0.21
T	"1""-8"
Oring OD	Y
Used On	CAT50
