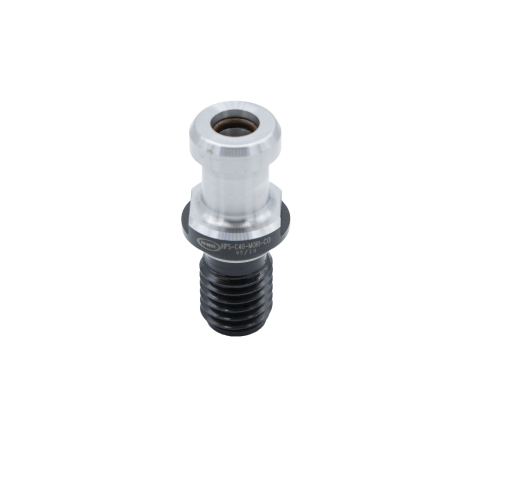

HPS-C40-MORI-CO

• Description: MORI CAT40 PULL STUD (15 DEG)
• Additional Info: COOLANT THRU W/ ID & OD ORING
• Catalog Page: 18
• List Price: $48.70
• Inventory Status: Stock
• Item Weight: 0.2 lbs

Call Out	Data
Wrench	TWS-M19
Notes	Mori Double O-ring model with 30 degree taper seal in ID.
A	75
D1	0.748
D2	0.551
D3	0.641
F	0.75
H	0.276
L1	2.014
L2	1.03
L3	0.793
L4	0.236
T	5/8/2011
Oring OD	Y
Oring ID	Y
Used On	CAT40
