HPS-C40-MAKINO-C
- Description: CAT40 PULL STUD (75 DEG) MAKINO

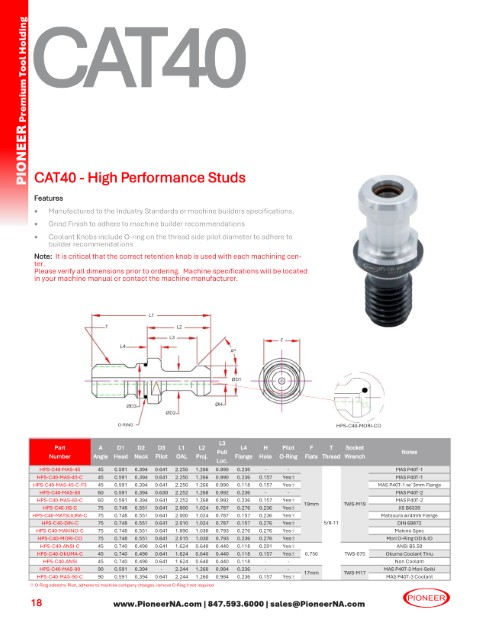

- Catalog Page: 18
- List Price: $31.80
- Inventory Status: Stock
- Item Weight: 0.2 lbs
| Call Out | Data |
|---|---|
| Wrench | TWS-M19 |
| Notes | JIS B6339 MODIFIED - 0.15MM LONGER ON PULL SIDE |
| A | 75 |
| D1 | 0.748 |
| D2 | 0.551 |
| F | 19 |
| H | 0.236 |
| L1 | 1.9 |
| L2 | 1.03 |
| L3 | 0.793 |
| L4 | 0.276 |
| T | 5/8/2011 |
| Oring OD | Y |
| Used On | CAT40 |
