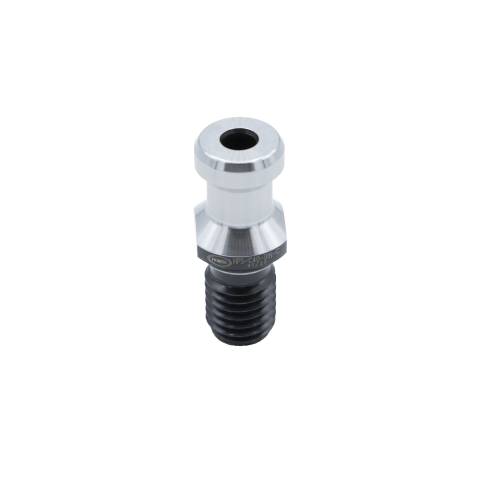

HPS-C40-DIN-C
- Description: DIN CAT40 PULL STUD (75 DEG)
- Additional Info: COOLANT THRU
- Catalog Page: 18
- List Price: $36.20
- Inventory Status: Stock
- Item Weight: 0.2 lbs
| Call Out | Data |
|---|---|
| Wrench | TWS-M19 |
| Notes | DIN 69872 |
| A | 75 |
| D1 | 0.748 |
| D2 | 0.551 |
| D3 | 0.641 |
| F | 19 |
| H | 0.276 |
| L1 | 2.01 |
| L2 | 1.024 |
| L3 | 0.787 |
| L4 | 0.157 |
| T | 5/8/2011 |
| Oring OD | Y |
| Used On | CAT40 |
