HPS-016
- Description: MAS P30T-1 BT30 PULL STUD (45 DEG)
- Additional Info: NON COOLANT HPS-B30-MAS-45

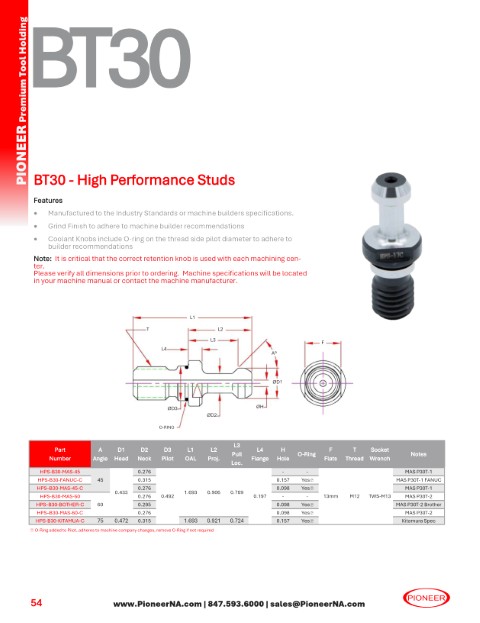

- Catalog Page: 54
- List Price: $24.90
- Inventory Status: Stock
- Item Weight: 0.1 lbs
| Call Out | Data |
|---|---|
| Wrench | TWS-M13 |
| Notes | MAS P30T-1 |
| A | 45 |
| D1 | 0.433 |
| D2 | 0.276 |
| D3 | 0.492 |
| F | 13 |
| H | - |
| L1 | 1.693 |
| L2 | 0.906 |
| L3 | 0.709 |
| L4 | 0.197 |
| T | M12 |
| Oring OD | - |
| Oring ID | - |
| Used On | BT30 |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
