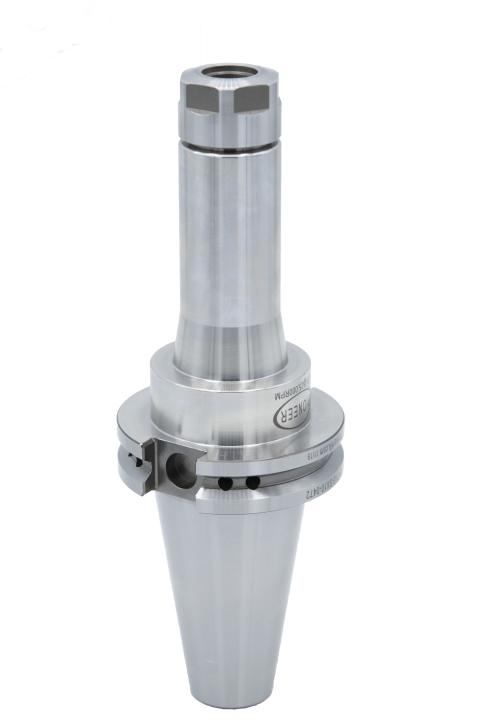

CAT40-SX10-0472
- Description: CAT40 SX10 COLLET CHUCK 4.72
- Catalog Page: 25
- List Price: $392.70
- Inventory Status: Stock
- Item Weight: 3.0 lbs
| Call Out | Data |
|---|---|
| Wrench | WRENCH SXW-10 H |
| Nut | NUT SXN-10 H |
| Preset Screw | SCW-ASC-12-30 |
| D1 | 1.08 |
| L1 | 4.72 |
| L2 | 2.76 |
| L3 | 2.81 |
| Style | 3 |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
