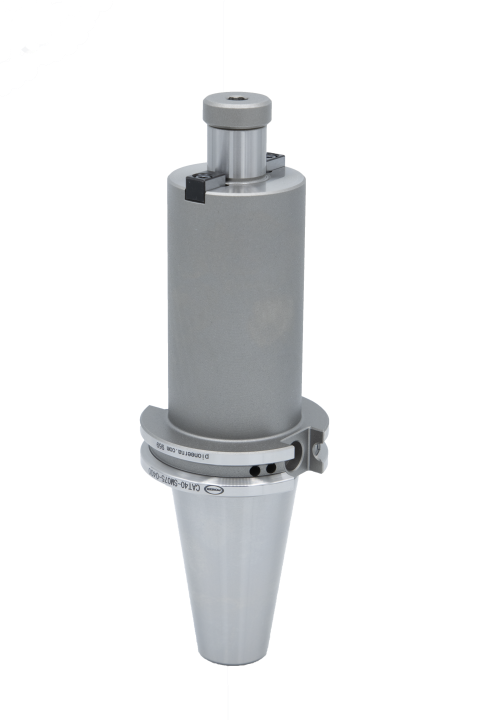

CAT40-SM075-0400
- Description: CAT40 3/4 SHELLMILL ADAPTER 4.00

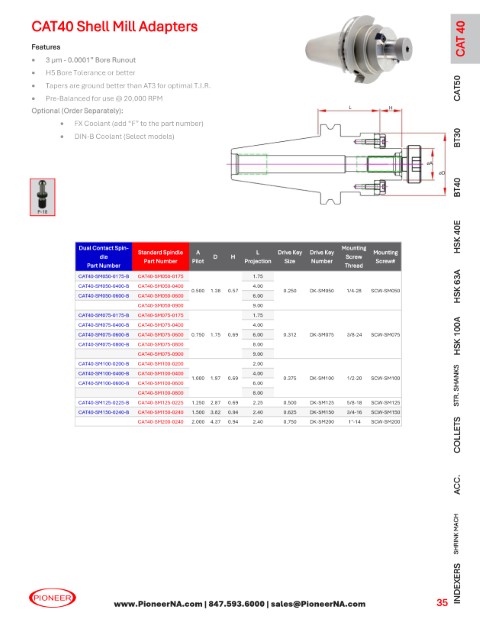

- Catalog Page: 35
- List Price: $208.10
- Inventory Status: Stock
- Item Weight: 4.1 lbs
| Call Out | Data |
|---|---|
| Screw | SCW-SM075 |
| Key | DK-SM075 |
| A | 0.75 |
| D1 | 1.75 |
| H | 0.69 |
| L1 | 4 |
| Drawing .dwg | DWG |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
