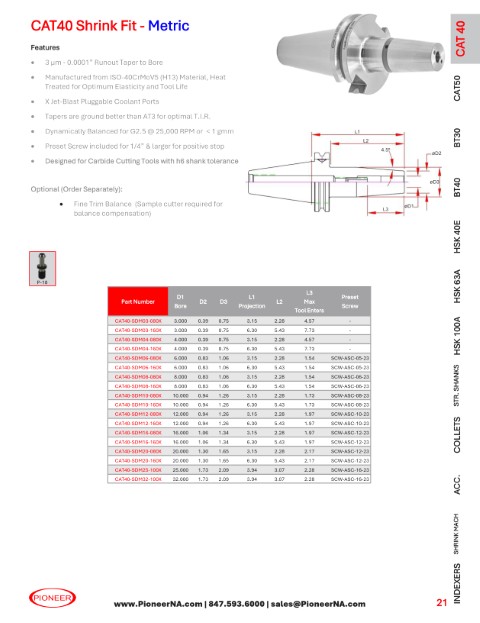

CAT40-SDM20-080
- Description: CAT40 20MM SHRINK FIT 3.15
- Catalog Page: Catalog page not available!
- List Price: $309.00
- Inventory Status: Stock
- Item Weight: 2.8 lbs
| Call Out | Data |
|---|---|
| Preset Screw | SCW-ASC-12-23 |
| A | 4.5 |
| D1 | 20 |
| D2 | 1.3 |
| D3 | 1.65 |
| L1 | 3.15 |
| L2 | 2.28 |
| L3 | 2.17 |
| Style | 1 |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
