CAT40-ER32-0106
- Description: CAT40 ER32 COLLET CHUCK 1.06 HEX
- Additional Info: STUB LENGTH - NO DIN AD/B

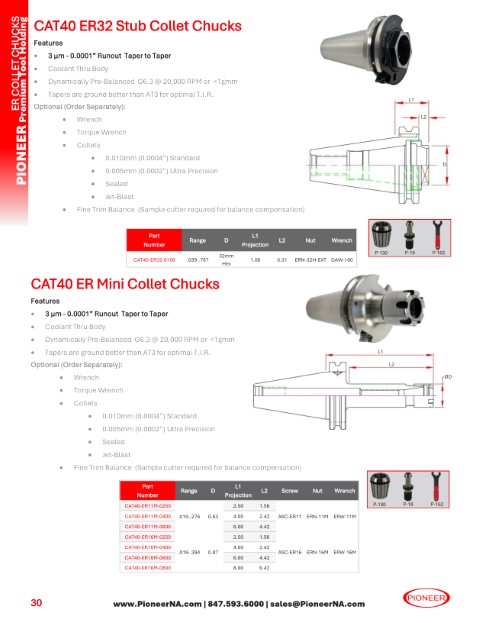

- Catalog Page: 30
- List Price: $205.50
- Inventory Status: Stock
- Item Weight: 1.5 lbs
| Call Out | Data |
|---|---|
| Wrench | WRENCH DAW180 |
| Nut | NUT ERN32H-E |
| Notes | Uses 32mm Crows Foot for Torque Wrench |
| D1 | 32mm Hex |
| L1 | 1.06 |
| L2 | 0.31 |
| Style | 1 |
| Drawing .dwg | DWG |
| Drawing .stp | STEP |
