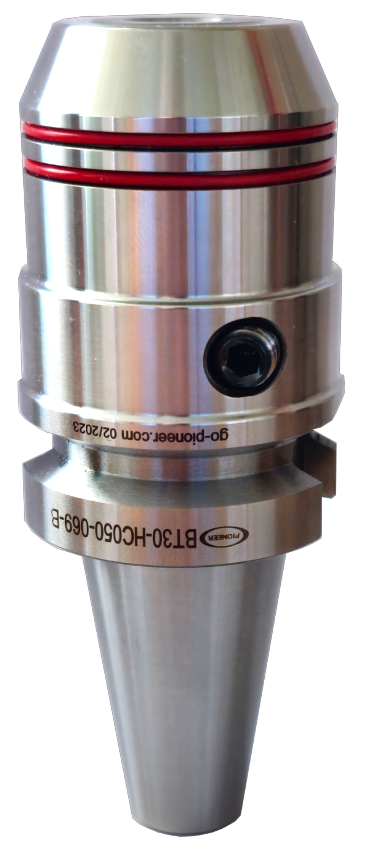

BT30-HC050-069-B
- Description: BT30 1/2 HYDRAULIC CHUCK X 2.72
- Additional Info: DUAL CONTACT

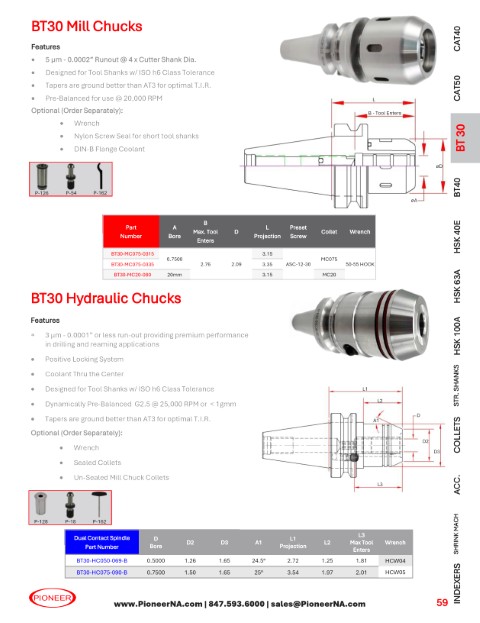

- Catalog Page: 59
- List Price: $494.00
- Inventory Status: Stock
- Item Weight: 0.0 lbs
| Call Out | Data |
|---|---|
| Wrench | WRENCH HCW04 |
| A | 0.5000 |
| B | 1.81 |
| D1 | 1.65 |
| D2 | 1.26 |
| L1 | 2.72 |
| L2 | 1.26 |
| Drawing .stp | STEP |
Free 3D STP file viewer for Windows can be downloaded here!
